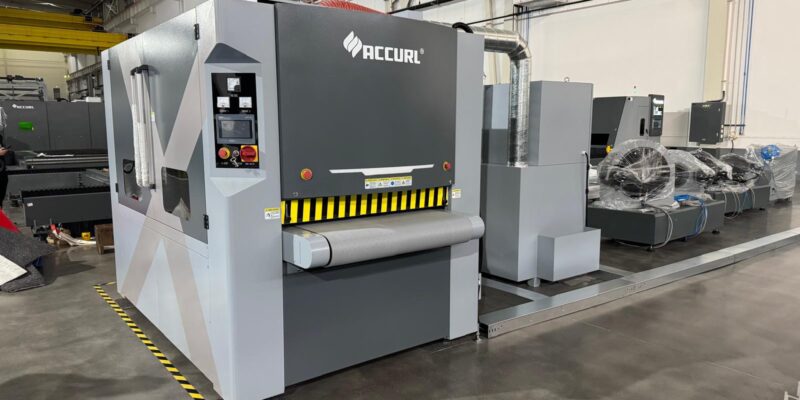

Our ACCURL Deburrer Machine is now available to order and comes with the following standard equipment:
Specifications
- Siemens PLC with 7″ touch screen control
- Carbon steel, stainless steel, aluminium plate, copper plate & non-ferrous metals
- Water type dust collector 5.5kw, Volume 400m³/h
- Processing thickness 0.5-80mm
- Min processing 50mm x 50mm
- Hammer disk 162mm
- Sand rolling brush 300mm x 300mm
- Delivery speed 0.5-6m/min
- 1 roller brush planetary revolution shaft head
- 6 rolling brush planetary rotation shaft head
Main processing scope
Processing products: carbon steel, stainless steel, aluminum plate, copper plate, all kinds of non-ferrous metals, etc.
Equipment function: This equipment is a dry type combination of one set of hammers disk, abrasive belts and four sets of universal roller brushes. It is mainly used to process the edges of workpieces, slag hanging in holes, deburring, and achieve hair lines, scale removal, and polishing of metal plates. Wait for processing. For stamping, shearing, laser cutting, plasma cutting, flame cutting and other processes, burrs can be removed in all directions, so that all edges, corners and holes can achieve a small R arc effect. The processing process is safe and reliable, so that the workpiece reaches perfect quality.
Advantages of use
- Improve production efficiency: continuous feeding through the type of processing, can meet the demand of order processing volume.
- Improve product quality: the workpiece processing consistency is good, the surface treatment effect is far beyond the manual treatment effect.
- Cost saving: the cost of processing workparts per unit area is much lower than that of manual processing.
- Safety and environmental protection: dust absorption, workers ‘operation safety, improve workers’ working environment.
If you would like to know more, give us a call on 01908 647707, or email us at [email protected]
See us at MACH 2026 for a demonstration of the Deburrer – Hall 19, Stand 310.
